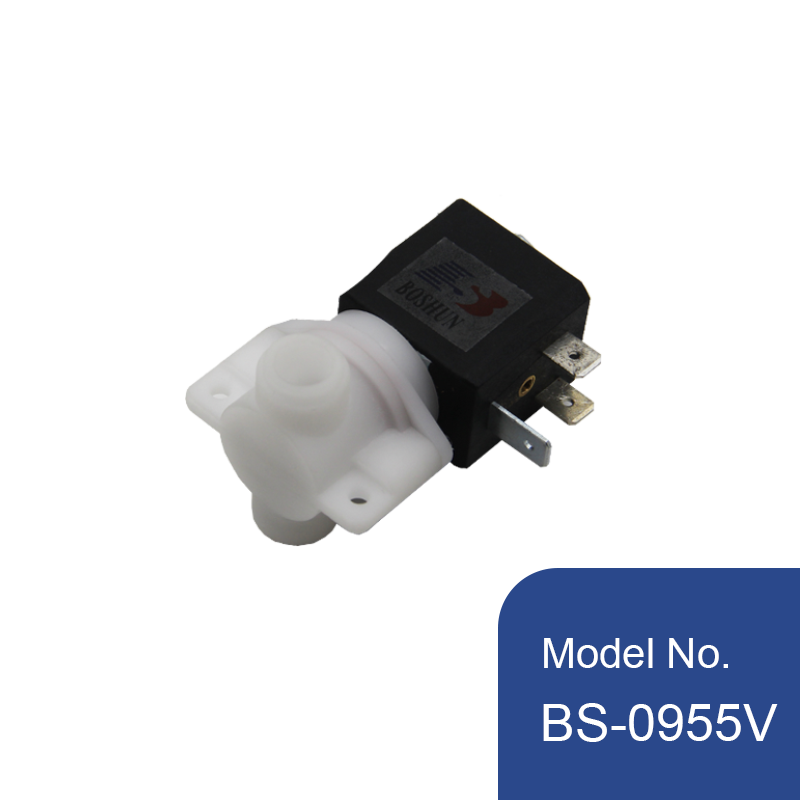

BS-0955V
█ Product specifications

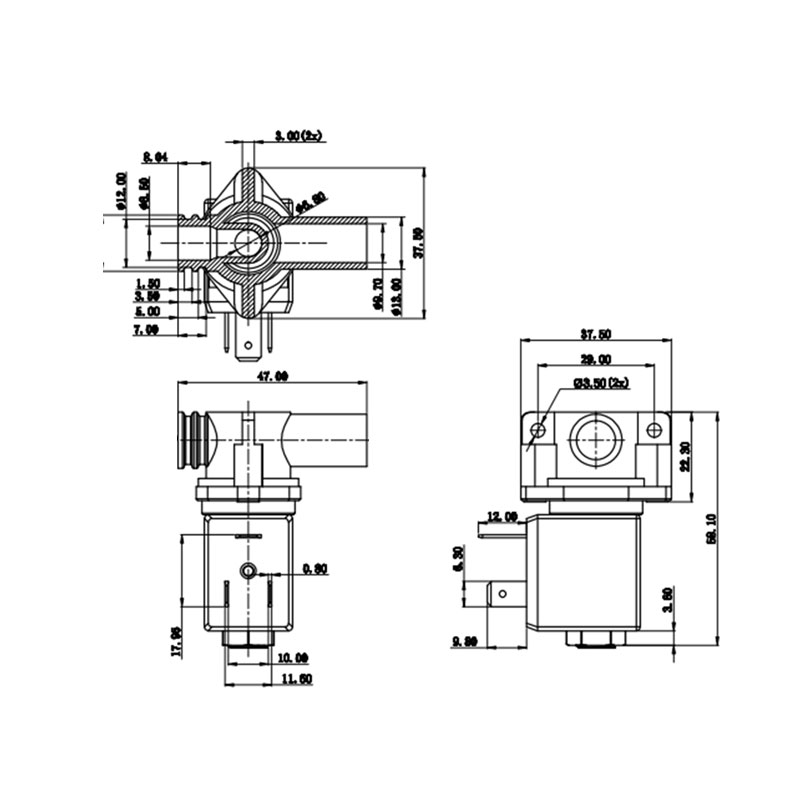

Dimension
37 x 47 x 68 mm
Port Size
1/8" 1/4" 3/8" 1/2"
Supply Voltage
3 - 48 VDC (other availble upon request)
Working Type
N/C
Duty cycle
10% - 100%
Weight
96 g
Media
Air
Working Pressure
0-30 Kpa
Protection class
Class E
Life Exoectancy
250,000 cycles
Electrical parameters can be designed upon request
Typical applications: ATM Machines | Battery Operated Locks | Locking Solenoid | Vending Equipment | Madical Supply Cabinets | Electric Locks | Instrumentation | Gamming Machines | Cash Drawer Machines | Lockers
█ Data sheet
Generally, for the same supply power, or the same duty cycle, the larger size of solenoids, the higher magnetic force. For the same size of solenoid, higher supply power generates stronger magnetic force. This can be realised by changing coil parameters.
█ Customization
Boshun Industry strength as a manufacturer is our ability to create bespoke from standard designs for our customers.
Our products can be customised upon request in a variety of ways: plunger end types, customised terminations, return springs, mounting holes, or electroplating.
